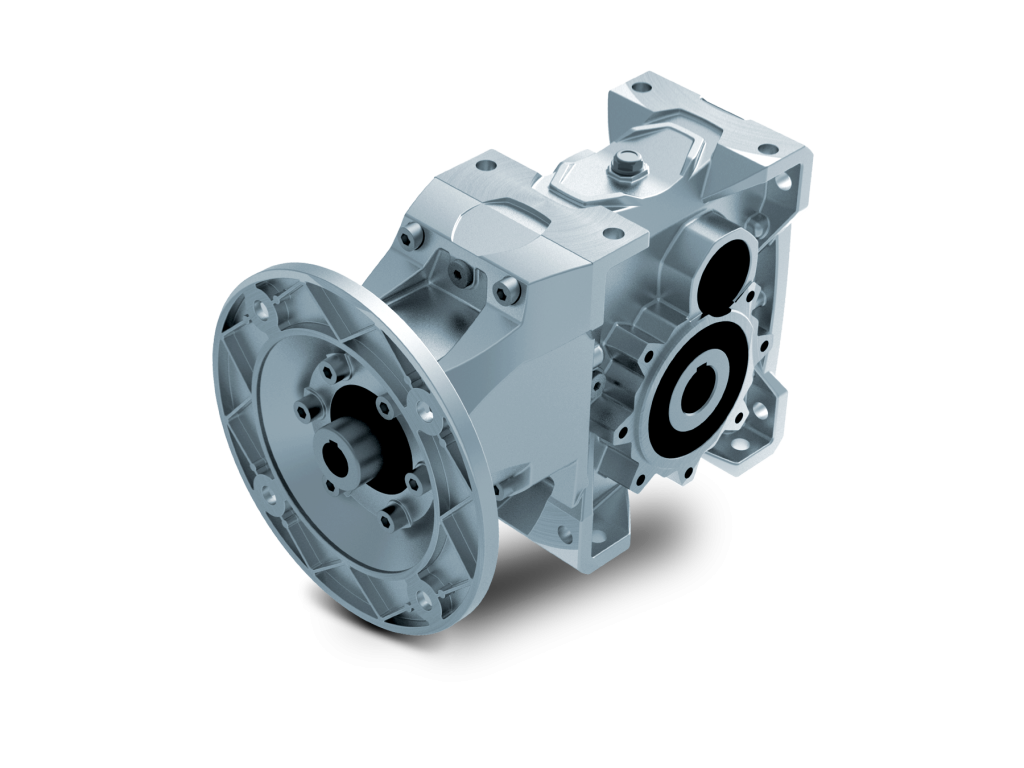

Bevel Helical Gearboxes
The Bevox series introduces a new generation of heli-bevel gearboxes built in lightweight Aluminium construction for interchangebility with Worm gearboxes of all popular makes. The distinctly superior efficiency and higher life of these gearboxes make the switching to these gearboxes a very sound commercial decision as the payback can be a matter of months. These gearboxes offer a torque capacity of up to 500 Nm, making them ideal for a wide range of industrial applications and a more efficient alternative to With their robust design, precision engineering, and long service life, Bevox gearboxes are a superior alternative to Worm gearboxes
Key Advantages
01)
Aluminium pressure die-cast housing & input flanges for strength with lightweight construction
02)
Hypoid gear design in first stage (2-stage) and middle stage (3-stage) for smooth power transmission
03)
Case-hardened, profile-ground steel gears delivering higher efficiency, durability, and reduced noise
04)
Easy maintenance with convenient side cover access
Technical Details
- Optional configurations – solid output shaft and output flange available
- High performance capacity – torque range from 130 Nm to 500 Nm
- Wide reduction ratios – from 5 to 300 (2 & 3 stages)
- Synthetic lubrication (ISO VG320 grade) for long service life and reliability
- Direct replacement – same footprint as equivalent QUBO size for easy one-to-one installation
