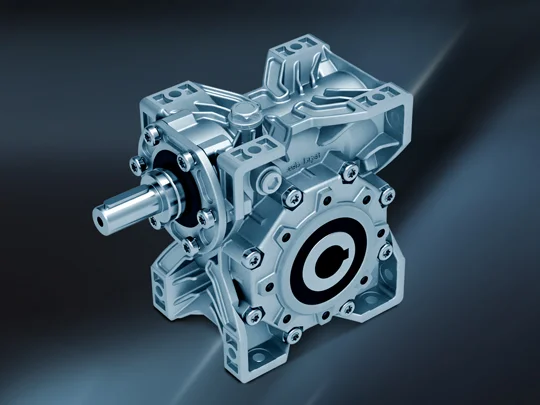

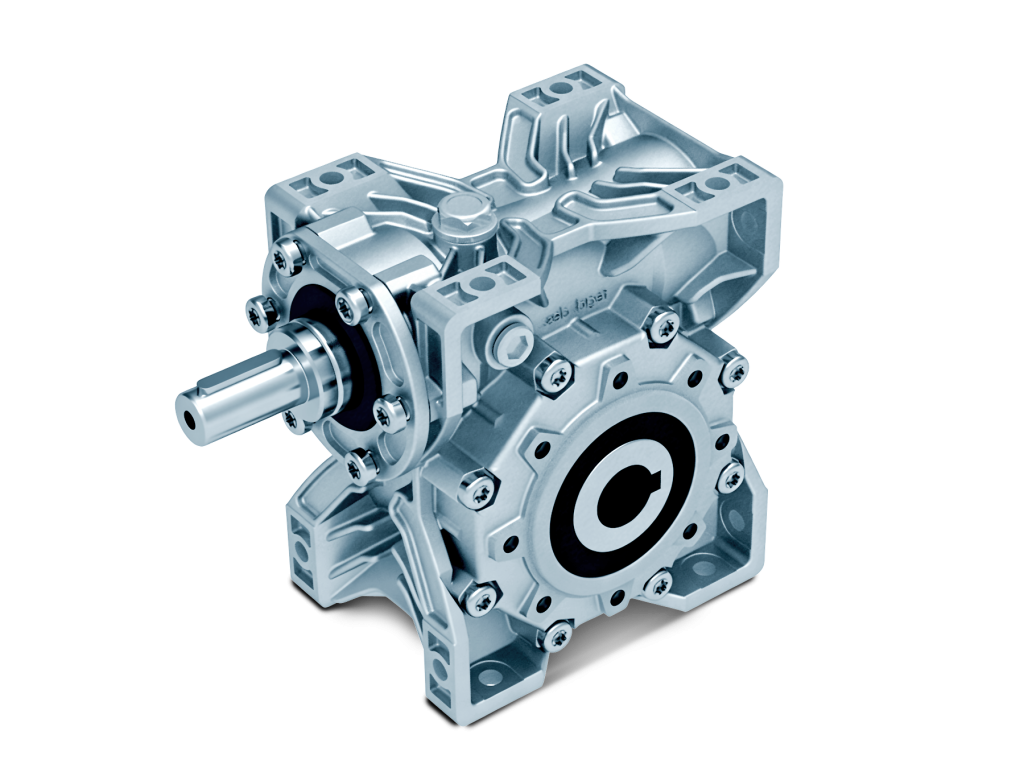

QUBO – WORM GEARBOXES

The patented QUBO series Worm Gearboxes are engineered for strength, versatility, and reliability. Crafted with die-cast ribbed aluminium housings for sizes 25 to 90, and robust cast iron construction from size 110 onwards, the QUBO series ensures durability across a wide range of applications. Designed for high structural rigidity and maximum flexibility, these gearboxes can be mounted in any position making installation simple and adaptable to diverse operational needs. QUBO gearboxes deliver innovative design, long-lasting performance, and unmatched convenience, setting a new standard in light weight and compact Worm gearboxes.

Key Advantages

Taper roller bearings designed to withstand axial thrust for reliable performance

Patented die-cast aluminium housing (up to Box 90) for lightweight strength

Super-finished gears ensuring smooth operation with reduced noise levels

Synthetic lubrication for long-lasting efficiency and reduced maintenance

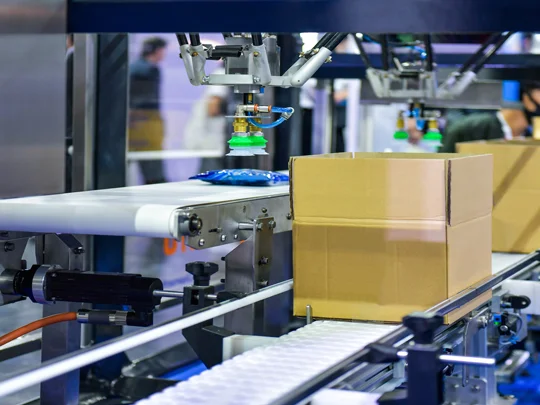

PRODUCT APPLICATION

TECHNICAL SPECIFICATION

  • QUBO Model: 30, 40, 50, 63, 75, 90, 110, 130, 150
  • Supported Motor Frame Sizes: 56-63, 63-71, 63-71-80, 71-80-90, 80-90-100-112, 80-90-100-112, 90-100-112-132, 90-100-112-132, 100-112-132-160
  • Maximum Output Torque (Nm): 19, 39, 74, 135, 205, 360, 675, 850, 1200,
