Energy Efficient IE2 IE3 and IE4 Motors

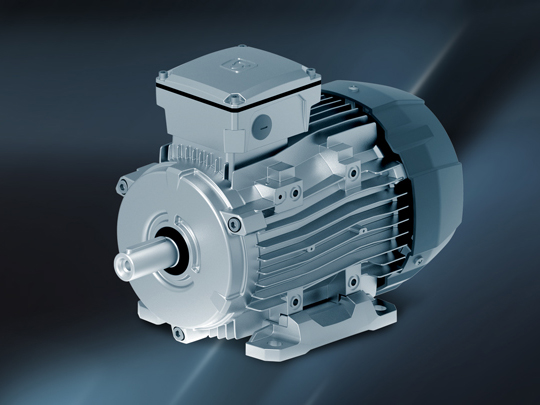

REVVO series Asynchronous three-phase motors are engineered for high efficiency (IE2) premium efficiency (IE3)and Ultra efficiency (IE4) performance. They are manufactured in strict dimensional compliance with IS:1231, IS:2223, and IEC72-1 standards. Mounting configurations, as per IS:2253 and IEC34-7, include B3, B5, B14, and B35. All REVVO series motors are totally enclosed and fan-cooled (TEFC), ensuring durability and reliability. Non-standard versions are available in TENV construction, with special mounting options, shaft designs, and other customized features.
Key Advantages
01)
High air gap flux density for superior performance
02)
Outstanding power-to-weight ratio ensuring compact yet powerful design
03)
Large torque-to-inertia ratio for rapid response and control
04)
Smooth torque delivery, even at low speeds
05)
Accurate torque control at zero speed for precision-driven applications
06)
Capability for high-speed operation with stable performance
07)
High overloading torque to handle demanding conditions
08)
Excellent efficiency and power factor for reduced energy consumption
Technical Details
- Power range: 0.18 kW to 315 Kw
- Configurations: 4-pole and 6-pole
- Frame sizes: 80 to 355
- Duty type: S1 continuous duty
- Protection: IP55 standard
