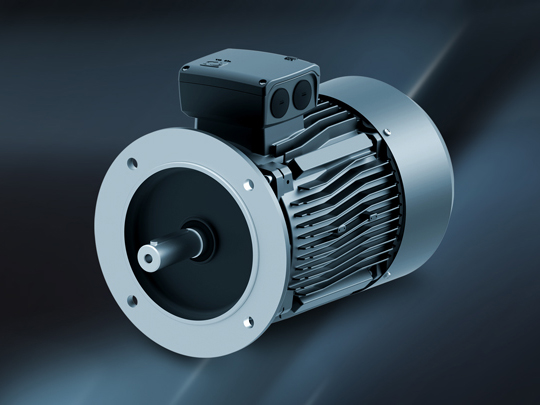

PMSM IE5 MOTORS
REVVO PM IE5 Series – for Ultra efficiency Achieve greater energy savings with the REVVO PM series Permanent Magnet Synchronous Motors (PMSM). Designed to meet IE5 efficiency standards, these motors deliver exceptional performance and reduced operating costs. Thanks to their flat efficiency curve, REVVO PM IE5 motors maintain peak efficiency even under real-world loads of 50–75%, where most motors typically operate. The result: significant energy savings and a faster return on investment, with payback periods that can be only a few months.
Key Advantages
High air gap flux density for superior performance
Outstanding power-to-weight ratio ensuring compact yet powerful design
Large torque-to-inertia ratio for rapid response and control
Smooth torque delivery, even at low speeds
Accurate torque control at zero speed for precision-driven applications
Capability for high-speed operation with stable performance
High overloading torque to handle demanding conditions
Excellent efficiency and power factor for reduced energy consumption
PRODUCT APPLICATION
TECHNICAL – SPECIFICATIONS
- Rating & Frame size: 0.55kW – 45 kW / 2,4, 6 pole / 80 – 225 frame
- Voltage: 380 / 400 / 415 / 460
- Frequency: 50 / 60 Hz
- Duty: S1
- Insulation: Class F (Class H on request)
- Protection: IP55 (IP56, IP66 on request)
