BLDC Fans

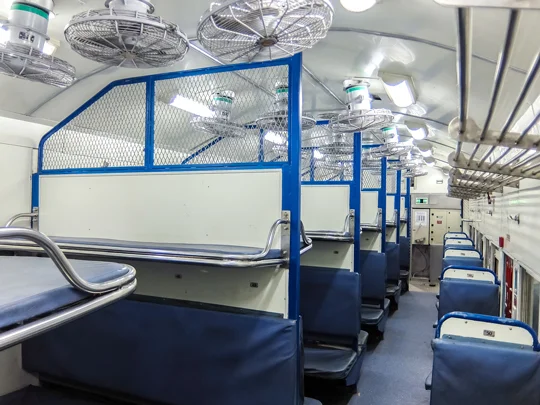

The BLDC Fans from Rotomotive Powerdrives is a high-efficiency brushless DC fan solution designed for railway applications. Built to meet stringent railway standards, these fans are engineered for reliable air circulation, low power consumption and reduced maintenance in railway coaches and rolling stock.
Key Advantages
01)
Brushless DC motor technology — eliminates brushes and commutator for higher reliability and longer life
02)
Energy-efficient operation — significantly lower power draw with consistent airflow and performance.
03)
Designed for railway use — compatible with typical 110 V DC coach supply and built to conform with relevant RDSO specifications.
04)
Low noise & lightweight design — quieter operation and reduced overall fan weight improve passenger comfort and system efficiency.
Technical Details
- Operating Voltage: 110 DC, 90V – 140V DC
- Input Protection: > 155V and < 65V restarting at 75V
- Power Consumption: 400 mm 32 watts, 450mm 35 watts
- Efficiency: 2.0 cubic meters/min/watt
- Power Source: 110DC
